Flexible Interal Combustion Rough Terrain Forklift Truck Wheel Track Front 1250 Mm Rear1320 Mm
1. Products Description
When the going gets ‘rough’ these workhorse-like machines provide the Ideal solution, especially working in natural terrain and disturbed terrain construction sites. Enjoy greater manoeuvrability and accessibility in less favourable applications, thanks to their large heavy-duty pneumatic cushion tires, ensuring easier navigation through rough terrain.
For more arduous applications, MCLLROY-Forklift two and four wheel drive Rough Terrain Forklifts provide a perfect solution. Designed to excel in demanding outdoor applications, whilst providing ultimate driver comfort, our robust rough terrain forklifts guarantee maximum performance, no matter how hard the conditions are.
2. Specification
| Specification | FD30T-4WD | FD30T - 2WD |
| Rate Loading Weight | 3000 KG | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic Manual /Auto 2R,0,2F | Hydraulic auto 1R,0,1F |
| Fork Size | 920/1070/1220/1500 mm | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid | Air / Solid |
| Front Tire | 12-16.5-10PR | 12-16.5-14PR |
| Rear Tire | 12-16.5-10PR | 27x10-12-12PR |
| Overhead Guard Height | 2450 mm | 2210 mm |
| Overall Length(with / without fork) | 4160 /3090 mm | 2940 mm |
| Overall Width | 1600 mm | 1550 mm |
Overall Height
(Mast extended/lowered) | 3000mm : 4350/2235 mm | 3000mm : 4350/2185 mm |
| Total Weight | 4900 KG | 4900 KG |
3. Details and Advantages
The MCLLROY’S FD30T-2/4 forklift truck is designed to operate on complicated floors.
With its simple and robust design, it is at ease on all types of ground thanks to its ground clearance of 38 cm.
The choice of tires and the 50 hp engine give it power and adaptability in all situations.
For easy maintenance, the throttle-opening hood gives access to all the essential components of the machine.
Accessible from both sides, the cab offers a spacious driving position and ergonomic controls for a quick grip.
With the rounded rear counterweight and 360° panoramic cab you gain visibility and safety.
4. Attachment
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means MCLLROY forklift can be customized. For example, paper roll clamp, bale clamp, block clamp, carton clamp, double forks and so on.
5. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |

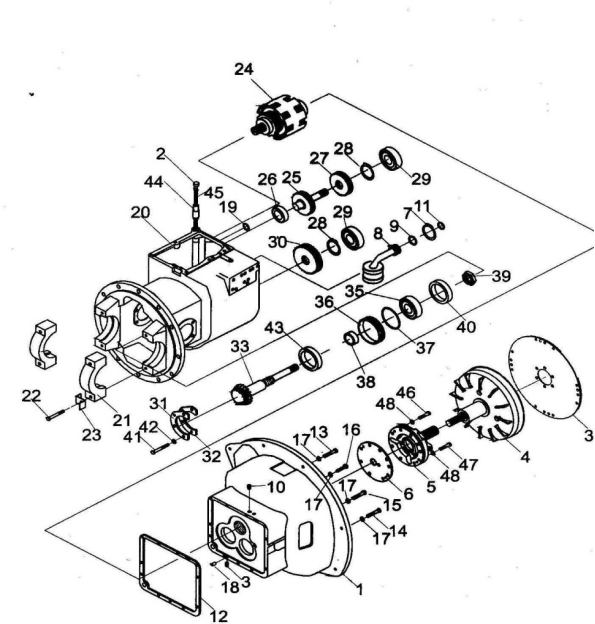

6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| 1 | FD20-35-C1002 | Case,tor-con | 1 | |
| 2 | FD20-35-C1003 | Cup | 1 | |
| 3 | FD20-35-C1004 | Plug | 1 | |
| 4 | FD20-35-C1005 | Tor-con assembly | 1 | |
| 5 | FD20-35-C1006 | Charging pump assembly | 1 | |
| 6 | FD20-35-C1007 | Gasket | 1 | |
| 7 | FD20-35-C1008 | Snap ring | 1 | |
| 8 | FD20-35-C1009 | Strainer | | |
| 9 | FD20-35-C1010 | O-ring | 1 | |
| 10 | FD20-35-C1011 | Plug | 2 | |
| 11 | FD20-35-C1012 | O-ring | 1 | |
| 12 | FD20-35-C1013 | Gasket | 1 | |
| 13 | FD20-35-C1014 | Bolt | 1 | |
| 14 | FD20-35-C1015 | Bolt | 3 | |
| 15 | FD20-35-C1016 | Bolt | 1 | |
| 16 | FD20-35-C1017 | Bolt | 4 | |
| 17 | GB/T93-1987 | Washer | 15 | |
| 18 | FD20-35-C1019 | Pin | 2 | |
| 19 | FD20-35-C1020 | O-ring | 1 | |
| 20 | FD20-35-C1021 | Case,mission | 1 | |
| 21 | FD20-35-C1022 | Cap.bearing | 2 | |
| 22 | FD20-35-C1023 | Bolt | 4 | |
| 23 | FD20-35-C1024 | Plate,lock | 4 | |
| 24 | FD20-35-C1025 | Clutch,hydraulic | 1 | |
| 25 | FD20-35-C1026 | Shaft,idler | 1 | |
| 26 | FD20-35-C1027 | Bearing | 1 | |
| 27 | FD20-35-C1028 | Gear,kdler | 1 | |
