Transmission Mechanical Transmission(3F+2R) Compact Wheel Loader, Isuzu Axle Compact Loading Shovel Loader
1. Products Description of MCLLROY Wheel Loader
In the realm of construction machinery, there exist four paramount factors that one must consider: price, quality, operation, and after-sales service.
The quantity of shovel material and the loader's stability hinge on the seamless collaboration of the loader frame. The fluidity and effortless operation of the loader is primarily contingent upon the hydraulic system. The frequency of breakdowns is reliant upon the caliber of the machine and the quality of after-sales maintenance.
MCLLROY Wheel Loaders are extensively utilized in the construction, municipal engineering, urban and rural landscaping, as well as lime, sand, cement factories, mines and other commercial organizations and governmental entities. It is particularly well-suited for the swift and efficient loading of stone, sand, and other construction materials in cramped spaces.
2. Specification of MCLLROY Wheel Loader
| MODEL | MCL 926 |
| ENGINE | Engine Model | Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| WEIGHTS | Operating Weight | 3340 kg |
| Rated Load | 1500 kg |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | Mechanical Transmission(3F+2R) |
| Alex | Isuzu |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 340 mm |
| Wheel Base | 1400 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5340 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
3. Details and Advantages of MCLLROY Wheel Loader

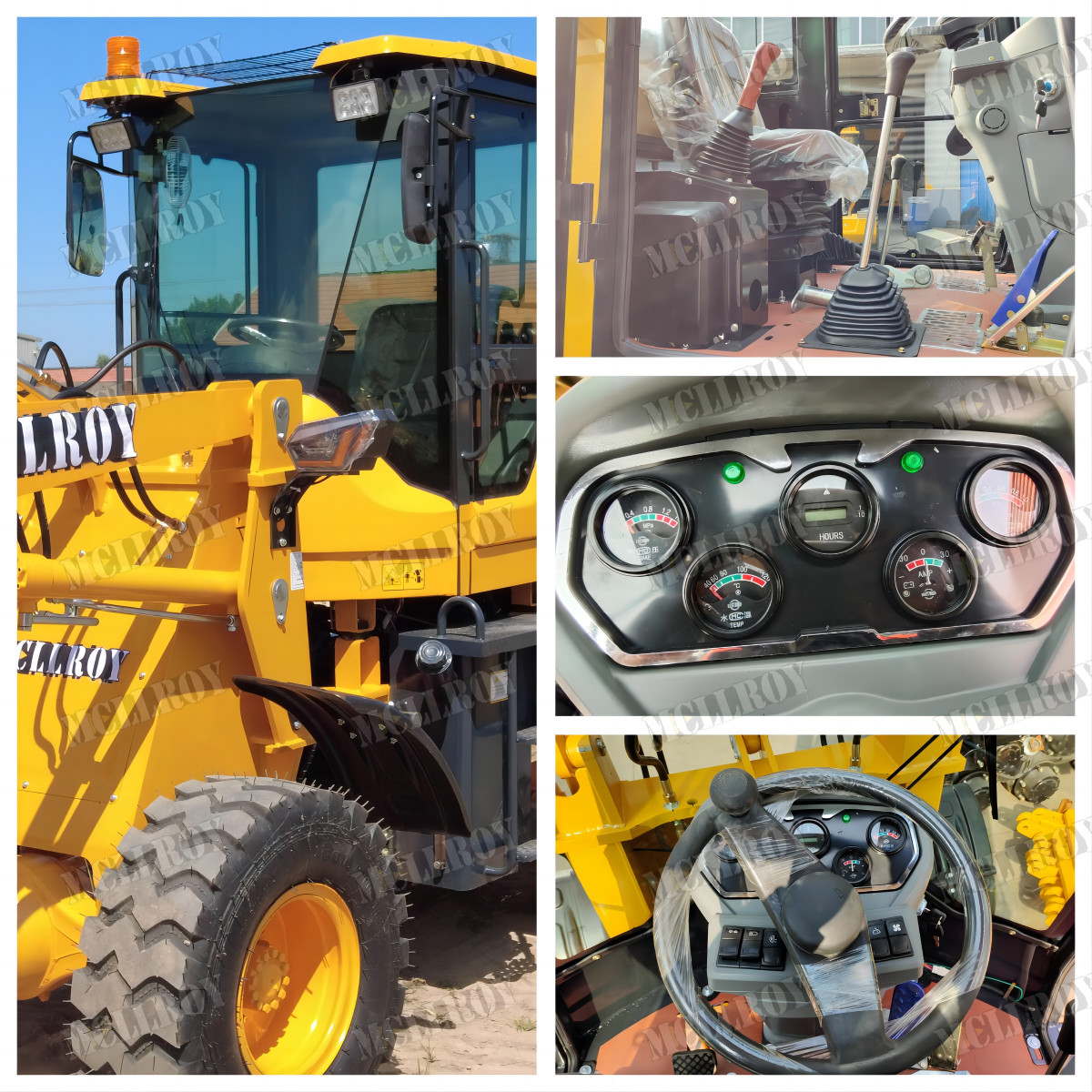

6) The anti-rollover cab is engineered with safety as a top priority. The high-pressure tempered glass construction ensures that, even in the unlikely event of glass breakage, individuals are less likely to suffer injury.
7) The adjustable seat has been ergonomically designed to minimize driver fatigue.
8) Featuring a user-friendly dashboard and an integrated hydraulic operating lever design, the loader offers effortless handling and uncomplicated operation.
9) The dual high and low-speed gearboxes and handles permit swift switching between work and travel modes.
10) The visual skylight design streamlines overhead shoveling and unloading operations.
4.Why Choose MCLLROY Wheel Loader
For the past 15 years, we have remained unwavering in our commitment to the production of construction machinery. Our core range of products includes wheel loaders, backhoe loaders, excavators, and self-loading concrete mixer trucks. Initially, we supplied crucial components such as axles, cabs, and frames to numerous esteemed domestic construction machinery factories. As our business expanded and technological advancements were made, we started producing our own line of wheel loaders while also continuing to supply loader parts to other manufacturers.
We take immense pride in not only designing and producing the entire machine in-house, but also serving as a supplier to other factories. For international buyers, we are the supplier to their suppliers.
Our construction machines boast a clear advantage in terms of both pricing and quality control of parts.
